FFC (Flat Flexible Cable)

flexible flat cables

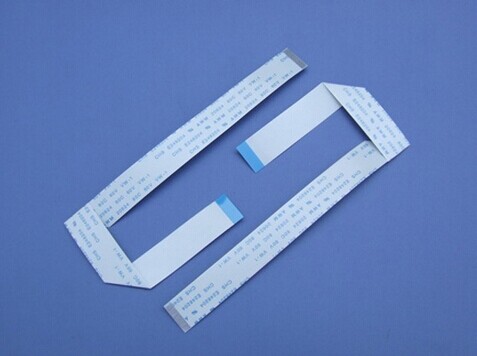

10Pin ffc cable
  • 10Pin ffc cable

ribbon flat cable,cable coax flat,10Pin ffc cable,flat panel cable,cable male connection You can custom your own ffc cables by clicking here.5 days leading time.

Details Parameters





Quick Details



Place of Origin:Guangdong China (Mainland)

Brand Name: Darlox

Model Number:D-FFC001

Application:Digital Cameras, Digital Camcorders and Laptops





Specifications

Tin Plated Copper, UL20624, 80C 60V
Pitch 2.54mm, 10Pin, Length 250mm, E Type

Construction

S/N

Material

Specfications

1

Insulated Film

Silkscreen UL20624 43um

2

Insulated Film

Blank UL20624 43um

3

Supporting Tape

Blue 225um

4

Conductor

Thickness CT

0.050

±0.005

Tin Plated Copper

Width CW

0.650

±0.03

Specifications

N

Conductor (Pin)

10

N/A

P

Pitch

2.54

±.10

TL

Total Length

250

±2.0

TP

Total Pitch

22.86

±.13

M

Margin/Edge Width

1.375

±.15

W

Total Width

25.61

±.13

S1

Copper Expose/
Strip Length

5.5

±1.0

S2

3.0

±.50

B1

Supporting Tape/
Stiffener

10.0

±2.0

B2

/

/

T

Terminal Sickness

0.318

±.03

Tt

Total Thickness

0.136

±.03

A

Cut-Off

Below 0.3

Specifications Requirements

1. Storage Condition:
Temp.: 15°C~25°C
Humidity: 30~60RH%
2. Products conforms to the RoHS Standard.
3. Plating: Sn plated above 1um.
